| 원래 장소: | 중국 |
| 브랜드 이름: | AAREAL |
| 인증: | ISO9001:2015 |
| 모델 번호: | Ag |
| 최소 주문 수량: | 1개 세트 |
|---|---|
| 가격: | Negotiable |
| 포장 세부 사항: | 기계 몸을 위한 플레스틱 필름, 및 (훈증 자유로운) 스크린 등과 같은 예비 품목을 위한 합판 나무로 되는 상자. |
| 배달 시간: | 15~35 지시 뒤에 있는 작업 일수는 확인했습니다 |
| 지불 조건: | 전신환, L/C (신용장) |
| 공급 능력: | 달 당 10 세트 |
| 양자택일 이름: | 모겐센 선별기, 모겐센 스크린, 모겐센 분급기, 모겐센 검사원, 모겐센 스크리닝 기계, 가능성 분급기 | 움직임: | 선형 진동 동의 |
|---|---|---|---|
| 특징: | 가능성 체질의 원리를 이용하세요 | 재료: | 탄소강, 스테인레스 강 (선택적) |
| 스크린의 층: | 1~3 레이어 | 스크린 구조: | 메시가 진보적으로 줄이고 다중층 부분적으로 덮는 스크린 그의 기온변화도 증가의 그룹 구석구석, |
| 스크린 Width*Length: | 800*1800mm, 1000*2000mm, 1200*3000mm, 1500*3600mm, 1800*4200mm 기타 등등. | 전원: | 2 대의 수평선상 진동 모터 |
| 하이 라이트: | Rectangular Linear Vibrating Screen,1500*3000mm Linear Vibrating Screen,1500*3000mm Rectangular Vibrating Screen |
||

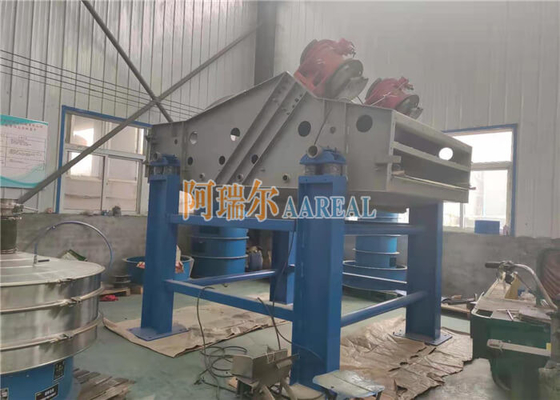

1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar
Overview of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:
1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar is also known as the mogensen sizer, mogensen screen, mogensen sieve, mogensen screener, mogensen screening machine, probability sieve, vibration probability screen, vibrating probability screen, vibration probability sieve, vibrating probability sieve etc. It is a kind of screening machine that actively uses the principle of probability screening.
The high efficiency vibration probability screen is a kind of new efficient screening equipment. The moving trajectory of the sieve box is linear. It adopts multi-layer and large inclined angle screen surface. The angle of the screen increases from top to bottom. And using probability theory, the mesh size is larger than the required sieve size, generally 1.2~2.2 times, which greatly improves the screening efficiency and production capacity.
This kind of high efficiency vibrating sieve has been widely used in metallurgy, building materials, coal and other industrial departments for medium and fine particle size grading.
This series of vibration sieving machine is a successful example of the combination of probability theory and engineering practice. Its new design concept, unique structure and screening principle have achieved the perfect screening effect of the probability screen and have a wide application prospect.
Working Principle of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:
The screen surface does linear vibration relying on the vibration excitation device. The high efficiency vibration probability sizer adopts the screen mesh which is bigger than the sieving granularity. Probability vibrating screen adopts multi-layer (usually 3 ~ 6 layer), large dip angle (generally 30°~60°), and large sieve mesh (the screen mesh size is 2~10 times of the separation size) as the screen surface. It consists of a frame, double vibrating motors and a group of multi-layer overlapping screens whose gradient increase from top to bottom, and the mesh of which decrease progressively.
The whole equipment is mounted on a set of elastic elements. High frequency vibration is obtained by the screen through the rotation of vibration motor.
The mesh size of high efficiency vibration probability screen is generally larger than particle size. As soon as the material enters the screen machine, it disintegrates rapidly, thereby eliminating the mesh clogging phenomenon may caused by the critical particles.
Main Dimensions of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:
| Model | L | L1 | L2 | B | B1 | H |
| AG-0818 | 1800 | 1100 | 260 | 820 | 1160 | 1800 |
| 2AG-0818 | 1800 | 1100 | 260 | 820 | 1160 | 1900 |
| AG-1020 | 2000 | 1250 | 300 | 1020 | 1380 | 1850 |
| 2AG-1020 | 2000 | 1250 | 300 | 1020 | 1380 | 1980 |
| AG-1024 | 2400 | 1550 | 300 | 1020 | 1380 | 2050 |
| 2AG-1024 | 2400 | 1550 | 300 | 1020 | 1380 | 2150 |
| 3AG-1024 | 2400 | 1550 | 300 | 1020 | 1380 | 2400 |
| AG-1030 | 3000 | 2000 | 300 | 1020 | 1380 | 2200 |
| 2AG-1030 | 3000 | 2000 | 300 | 1020 | 1380 | 2350 |
| AG-1224 | 2400 | 1550 | 380 | 1230 | 1620 | 2050 |
| 2AG-1224 | 2400 | 1550 | 380 | 1230 | 1620 | 2200 |
| 3AG-1224 | 2400 | 1550 | 380 | 1230 | 1620 | 2450 |
| AG-1230 | 3000 | 2000 | 380 | 1230 | 1620 | 2200 |
| 2AG-1230 | 3000 | 2000 | 380 | 1230 | 1620 | 2350 |
| 3AG-1230 | 3000 | 2000 | 380 | 1230 | 1620 | 2600 |
| AG-1236 | 3600 | 2350 | 380 | 1230 | 1620 | 2350 |
| 2AG-1236 | 3600 | 2350 | 380 | 1230 | 1620 | 2500 |
| AG-1530 | 3000 | 2000 | 450 | 1530 | 1930 | 2200 |
| 2AG-1530 | 3000 | 2000 | 450 | 1530 | 1930 | 2350 |
| 3AG-1530 | 3000 | 2000 | 450 | 1530 | 1930 | 2600 |
| AG-1536 | 3600 | 2350 | 450 | 1530 | 1930 | 2350 |
| 2AG-1536 | 3600 | 2350 | 450 | 1530 | 1930 | 2600 |
| AG-1836 | 3600 | 2350 | 500 | 1830 | 2300 | 2400 |
| 2AG-1836 | 3600 | 2350 | 500 | 1830 | 2300 | 2550 |
| 3AG-1836 | 3600 | 2350 | 500 | 1830 | 2300 | 2810 |
| AG-1842 | 4200 | 2800 | 500 | 1830 | 2300 | 2560 |
| 2AG-1842 | 4200 | 2800 | 500 | 1830 | 2300 | 2720 |
Features of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:
1. The production capacity of unit area is large, and the screen mesh is not easy to jam.
2. Uniform material distribution and high screening efficiency.
3. It is easy to replace the screen. The screen tension is moderate. No cross layer and mesh blockage.
4. Several kinds of products with different particle sizes can be produced at the same time.
5. Completely enclosed, free of dust, smooth operation, easy to use and maintain.
6. A single high efficiency vibration probability screen machine can separate 2~7 grain size materials at the same time.
7. The equipment is made of high quality stainless steel, corrosion resistant and long service life.
Main Technical Parameters of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:
| Model | Layer |
Screen Area (m2) |
Screen Aperture (mm) |
Feed Size (mm) |
Capacity (t/h) |
Double Amplitude (mm) |
Shake Frequency (r/min) |
Power (KW) | Max. Vibration Force (KN) |
| AG-0818 | 1 | 1.44 | 0.25-6 | ≤40 | 1.5-20 | 6-8 | 980 | 0.75×2 | 10×2 |
| 2AG-0818 | 2 | 1.44 | 0.25-12 | ≤40 | 2-40 | 6-8 | 980 | 0.75×2 | 10×2 |
| AG-1020 | 1 | 2 | 0.25-6 | ≤50 | 2-30 | 6-8 | 980 | 1.1×2 | 16×2 |
| 2AG-1020 | 2 | 2 | 0.25-12 | ≤50 | 2.5-60 | 6-8 | 980 | 1.1×2 | 16×2 |
| AG-1024 | 1 | 2.4 | 0.25-6 | ≤50 | 2.5-45 | 6-8 | 980 | 1.1×2 | 16×2 |
| 2AG-1024 | 2 | 2.4 | 0.25-12 | ≤50 | 3-80 | 6-8 | 980 | 1.5×2 | 20×2 |
| 3AG-1024 | 3 | 2.4 | 0.25-12 | ≤50 | 4-100 | 6-8 | 980 | 1.5×2 | 20×2 |
| AG-1030 | 1 | 3 | 0.25-6 | ≤50 | 3-60 | 6-8 | 980 | 1.5×2 | 20×2 |
| 2AG-1030 | 2 | 3 | 0.25-12 | ≤50 | 4-100 | 6-8 | 980 | 1.5×2 | 20×2 |
| AG-1224 | 1 | 2.88 | 0.25-6 | ≤80 | 3-60 | 6-8 | 980 | 1.5×2 | 20×2 |
| 2AG-1224 | 2 | 2.88 | 0.25-12 | ≤80 | 4-100 | 6-8 | 980 | 2.2×2 | 30×2 |
| 3AG-1224 | 3 | 2.88 | 0.25-12 | ≤80 | 5-120 | 6-8 | 980 | 2.2×2 | 30×2 |
| AG-1236 | 1 | 4.32 | 0.35-6 | ≤80 | 6-100 | 6-8 | 980 | 2.2×2 | 30×2 |
| 2AG-1224 | 2 | 4.32 | 0.35-12 | ≤80 | 8-150 | 6-8 | 980 | 2.2×2 | 30×2 |
| AG-1230 | 1 | 3.6 | 0.25-6 | ≤80 | 4-80 | 6-8 | 980 | 1.5×2 | 20×2 |
| 2AG-1230 | 2 | 3.6 | 0.25-12 | ≤80 | 5-120 | 6-8 | 980 | 2.2×2 | 30×2 |
| 3AG-1230 | 3 | 3.6 | 0.25-12 | ≤80 | 6-150 | 6-8 | 980 | 2.2×2 | 30×2 |
| AG-1530 | 1 | 4.5 | 0.35-6 | ≤100 | 6-100 | 6-8 | 980 | 2.2×2 | 30×2 |
| 2AG-1530 | 2 | 4.5 | 0.35-12 | ≤100 | 8-150 | 6-8 | 980 | 3.0×2 | 40×2 |
| 3AG-1530 | 3 | 4.5 | 0.35-12 | ≤100 | 10-180 | 6-8 | 980 | 3.0×2 | 40×2 |
| AG-1536 | 1 | 5.4 | 0.35-6 | ≤100 | 8-120 | 6-8 | 980 | 3.0×2 | 40×2 |
| 2AG-1536 | 2 | 5.4 | 0.35-12 | ≤100 | 10-200 | 6-8 | 980 | 3.0×2 | 40×2 |
| AG-1836 | 1 | 6.48 | 0.35-6 | ≤120 | 12-150 | 6-8 | 980 | 3.7×2 | 50×2 |
| 2AG-1836 | 2 | 6.48 | 0.35-12 | ≤120 | 16-250 | 6-8 | 980 | 3.7×2 | 50×2 |
| 3AG-1836 | 3 | 6.48 | 0.35-12 | ≤120 | 20-300 | 6-8 | 980 | 3.7×2 | 50×2 |
| AG-1842 | 1 | 7.56 | 0.35-6 | ≤120 | 15-200 | 6-8 | 980 | 3.7×2 | 50×2 |
| 2AG-1842 | 2 | 7.56 | 0.35-12 | ≤120 | 20-300 | 6-8 | 980 | 3.7×2 |
50×2 |
Selection Tips of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:
1. There are several installatio forms for the high efficiency linear vibration screen, such as seated type, suspension type and the combination of the two kinds. Please consider it carefully when selecting.
2. It has two kinds of vibration source forms: vibration motor and exciter, which are used for different operating environment requirements. When choosing, please determine the voltage system and whether there is explosion-proof requirement or not.
