원래 장소: | 중국 |
브랜드 이름: | AAREAL |
인증: | ISO9001:2015 |
모델 번호: | AZ |
최소 주문 수량: | 1개 세트 |
---|---|
가격: | Negotiable |
포장 세부 사항: | 작은 사이즈를 위한 훈증 무료 합판 나무 상자 |
배달 시간: | 20~30 일 확인되는 순서 후에 일 |
지불 조건: | 전신환, L/C (신용장) |
공급 능력: | 달 당 10 세트 |
이름: | 선형 진동체 스크린 | 장치를 모십시오: | 두배 수평선상 진동 모터 |
---|---|---|---|
갑판: | 다중 갑판 | 재료: | 스테인레스 강 304, 316L 기타 등등. |
스크린 프레임 / 홀더: | 나무사이판 골조, 탄소강 스크린 프레임, 스테인레스 강 스크린 프레임 | 장점: | 이용 가능한 1~8 분급기 데크가 선별 정밀도와 생산력을 균형화시키기 위해 스크린 표면각을 조정할 수 있습니다 |
하이 라이트: | 500*2000 선 진동 스크린,의약품 선 진동 Screen,500*2000 수평선상 진동 스크린 |

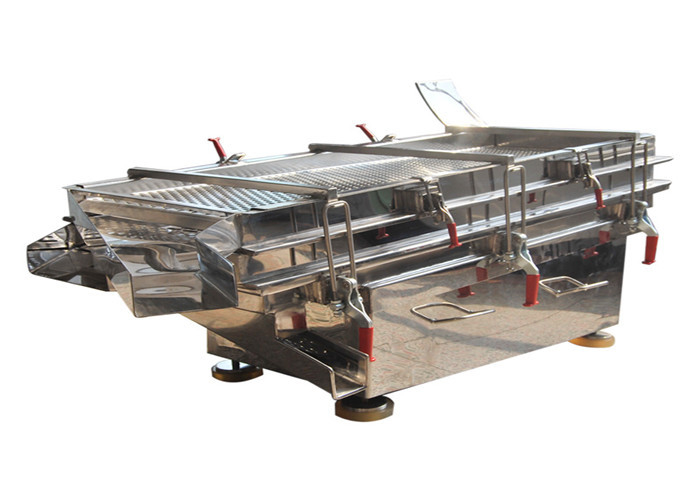

Multi Decks Medicine 500*2000 Linear Vibrating Screen
Overview of Linear Vibrating Screen:
linear screener machine use vibration motor as vibration source, the gravel is rosed and moved in the straight at the same time. The gravel are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates. It is suitable for low consuming, high output, and simple structure, easily maintain all-closed structure, no powder dispersed.
Working Principle of Linear Vibrating Screen:
- vibration is activated by one or two vibrating motors with adjustable out-of-balance force;
- vibration develop in the horizontal and in the vertical plane and can be settled in both directions;
- vibrating motor design allows to adjust easily the counterweight and modify the vibration to find the best way to sieve a product (for gentle screening, long residence times, high throughputs or difficult-to-screen products);
- high screening efficiency both with liquid and solid products;
- vibrating motor are standard and provide reliable power;
- rectangular separators are provided with high quality suspension that virtually eliminates transmitted vibrations;
- screens are easy and fast to change and can be equipped with rubber balls cleaning system;
- built on customer request with carbon steel, stainless steel AISI 304, stainless steel AISI 316.
Structure of Linear Vibrating Screen:
Rectangular separator is mainly composed of screen box, sieve mesh, vibration motor, motor pedestal, damping spring and brackets.
1. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Application of Linear Vibrating Screen:
This sieving machine is suitable for screening materials which are between 0.74mm and 10mm, water content less than 7%, and no sticky.
It is widely used in chemical industry, food, plastic, medicine, metallurgy, glass, building materials, grain, fertilizer, abrasive, ceramics and other industries, for dry powder or granular material screening.
Technical Parameters of Linear Vibrating Screen:
Model | Nominal Size (mm) | Particle Size (mm) | Leaning Angle of Screen(°) | Amplitude (mm) | Layer | Power (Kw) |
AZ-520 | 500*2000 | 0.0074~10 | 0~7° | 4~10 | 1~6 | 2*(0.4~0.75) |
AZ-525 | 500*2500 | 2*(0.4~0.75) | ||||
AZ-530 | 500*3000 | 2*(0.4~0.75) | ||||
AZ-1020 | 1000*2000 | 2*(0.4~0.75) | ||||
AZ-1025 | 1000*2500 | 2*(0.4~1.1) | ||||
AZ-1030 | 1000*3000 | 2*(1.1~1.5) | ||||
AZ-1040 | 1000*4000 | 2*(1.1~1.5) | ||||
AZ-1225 | 1200*2500 | 2*(1.1~1.5) | ||||
AZ-1235 | 1200*3500 | 2*(1.1~2.2) | ||||
AZ-1250 | 1200*5000 | 2*(1.1~2.2) | ||||
AZ-1535 | 1500*3500 | 2*(1.1~2.2) | ||||
AZ-1560 | 1500*6000 | 2*(2.2~3.7) | ||||
AZ-1845 | 1800*4500 | 0.0074~15 | 2*(2.2~3.7) | |||
AZ-2050 | 2000*5000 | 2*(2.2~3.7) | ||||
AZ-2060 | 2000*6000 | 2*(2.2~3.7) |
Single Layer Multi-layer
Plastic Grain Separator Washing Powder Separator
New Type Spring Separator
Sanitary Separator
